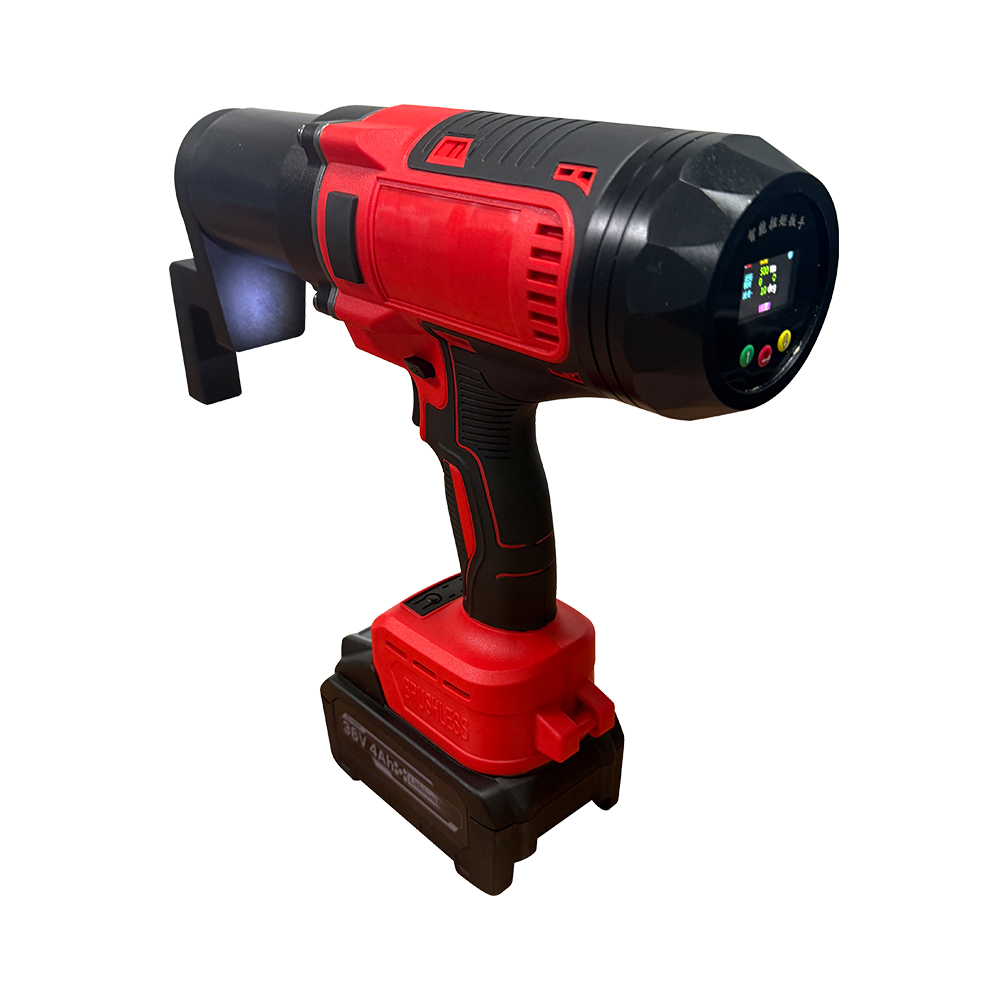

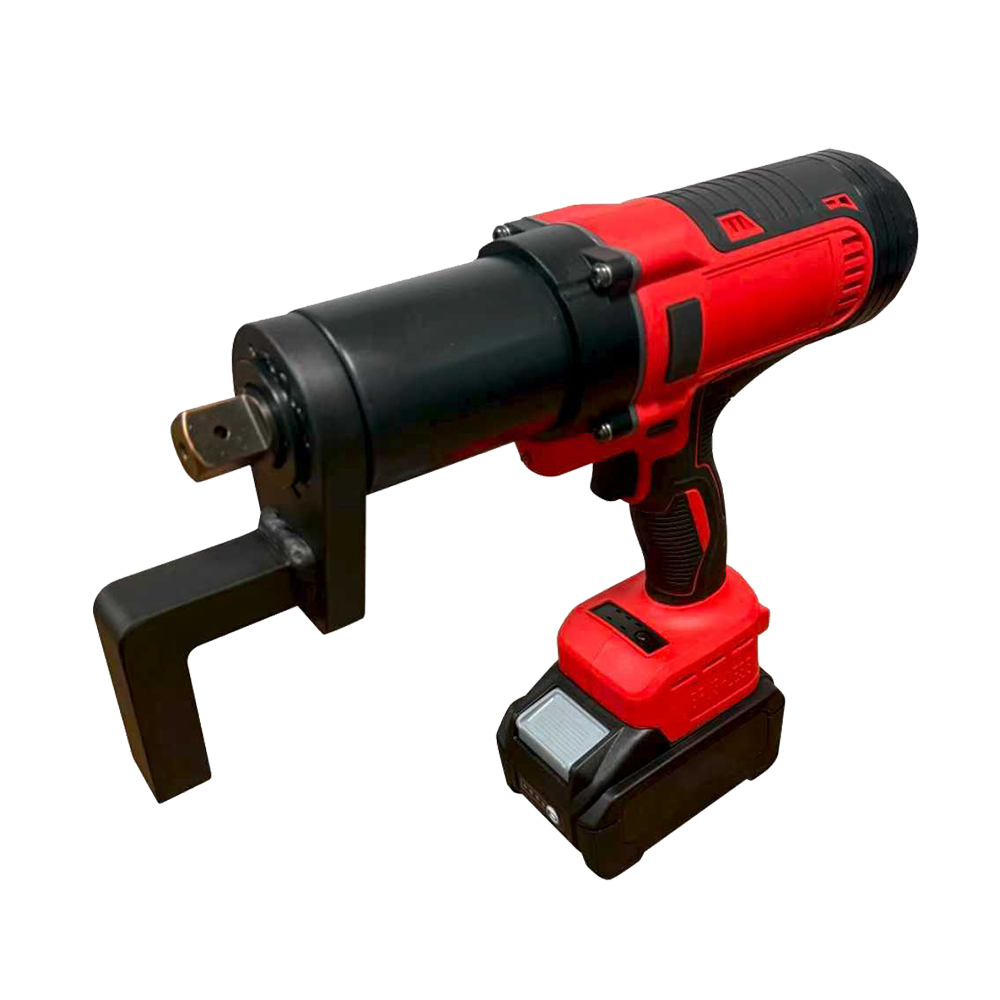

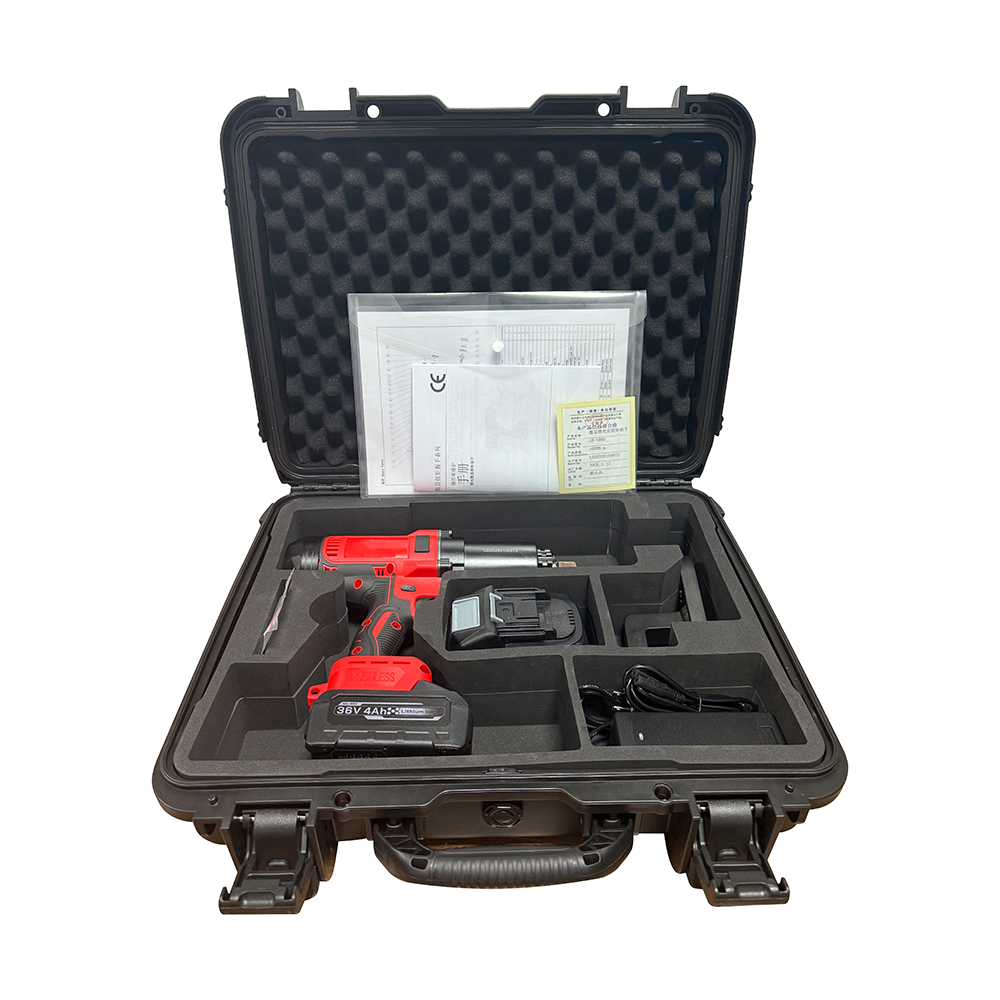

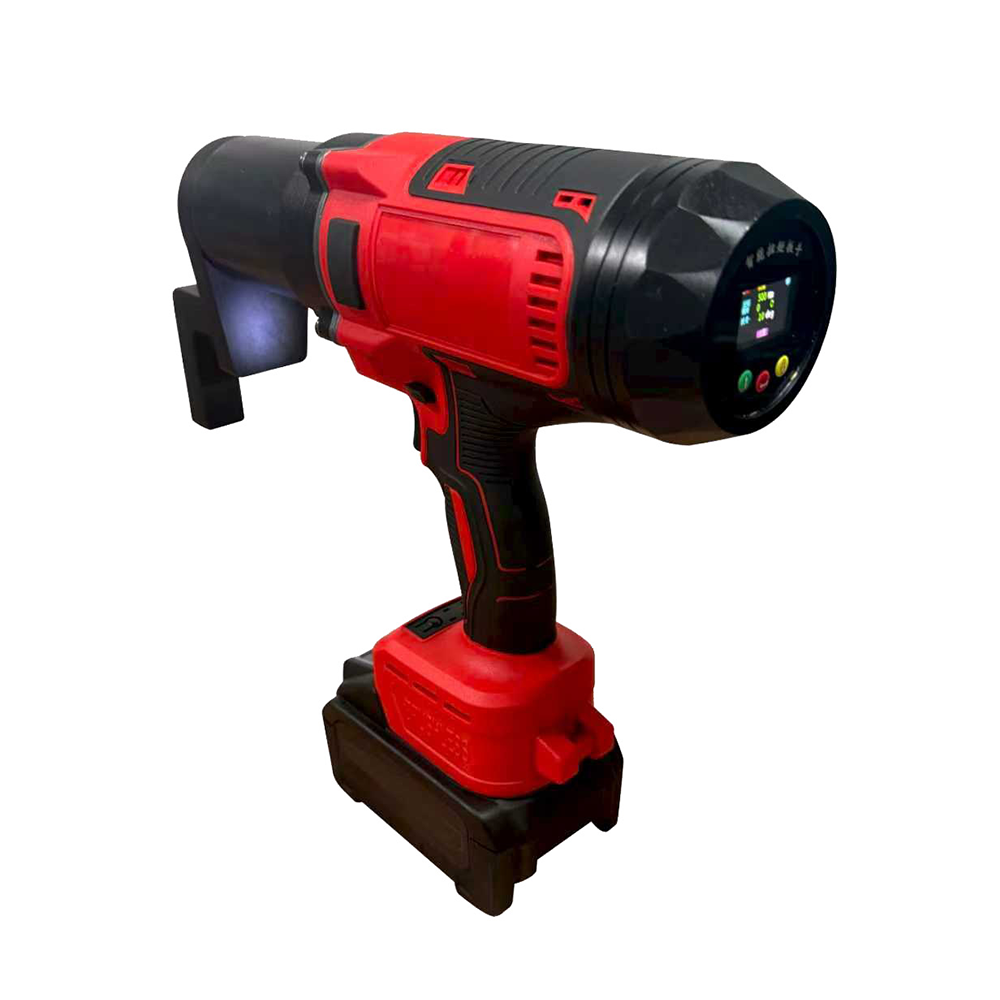

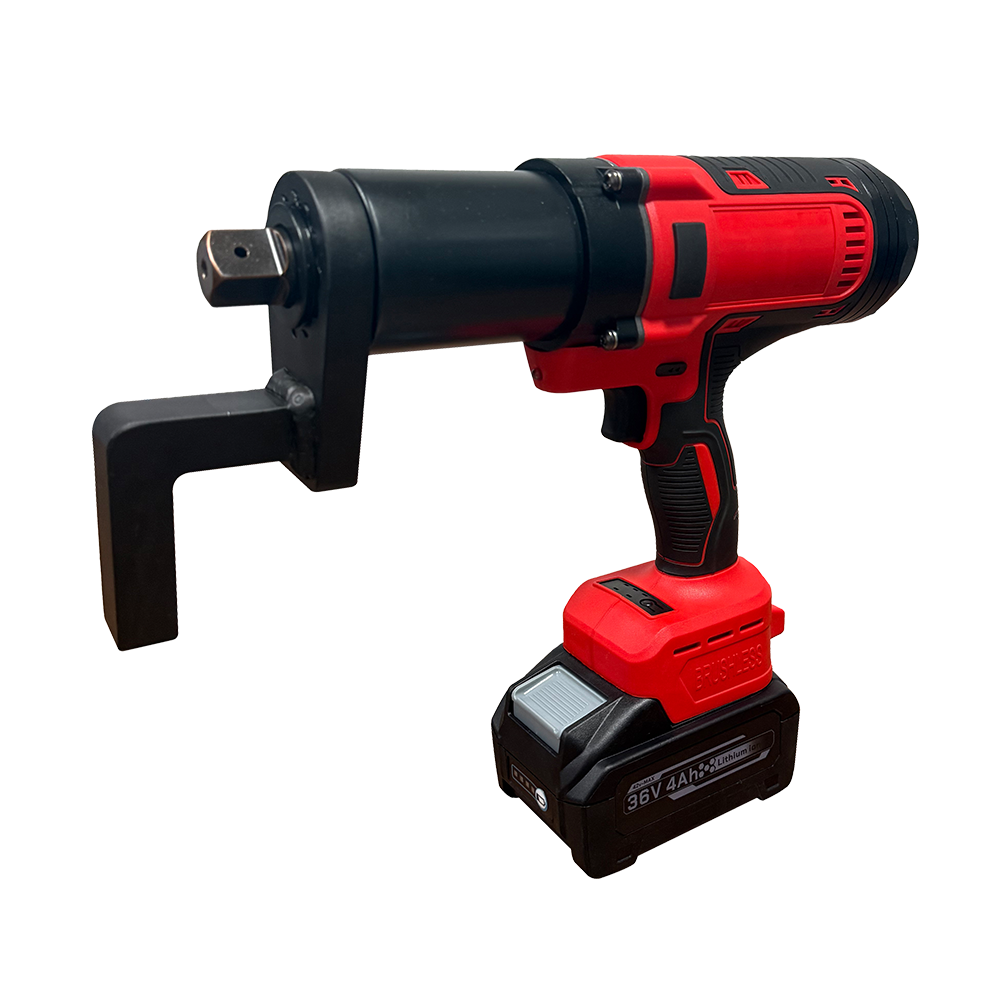

LD-1000 Digital Display Precision Control Electric Torque Wrench

High Precision Torque Wrench

LD-1000 Digital Display Precision Control Electric Torque Wrench

Real time display of torque, speed, angle, and torque output failure alarm prompt.
Set the torque arbitrarily and adjust it by 1Nm to increase or decrease.
Get in Touch

Product Features

  • Real time display of torque, speed, angle, and torque output failure alarm prompt.

  • Set the torque arbitrarily and adjust it by 1Nm to increase or decrease.

  • Precise torque control, torque accuracy ± 5%, repeatability accuracy ± 2%.

  • Automatically stop and unload when reaching the set target value.

  • Adapt to the calibration function of standard values under various working conditions.

  • Wide torque: The output torque is fully covered from 0-8000Nm, and a higher torque output range can be customized.

  • Motor overheating alarm, system fault alarm, operation error alarm, torque overload limit function.

  • Intelligent software APP: optional WIFI module, data recording and uploading, data tracking, tightening result judgment.

  • Auxiliary accessories: Optional dual combination of power and battery, one machine is equivalent to a charging torque wrench and a plug-in torque wrench. One wrench can be used to charge the battery, and can also be equipped with a professional connection box to match the internationally recognized 90V-260V AC power supply, making up for the time-consuming battery charging and more efficient.

LD-1000 Digital Display Precision Control Electric Torque Wrench

Product Parameters

Model

Min.Torque

(N.m)

Max.Torque

(N.m)

Square Drive

(S)

Outer Diameter

(D)

L

H1

H2

R1

R2

Weight

No-load Speed

mm

(Kg)

rpm

LD-300

60

300

3/4"

60

270

76

245

53

102

2.5

26

LD-500

100

500

3/4"

60

270

76

245

53

102

4.3

26

LD-1000

200

1000

3/4"

74

277

76

245

60

115

4.8

18

LD-1500

300

1500

1"

76

317

76

245

66

135

5.2

8

LD-2000

420

2000

1"

76

317

76

245

66

135

5.5

6

LD-3100

620

3000

1"

86

340

76

245

78

145

7.5

6

LD-4000

1000

4000

1-1/2"

95

350

76

245

78

145

9.5

3.2

LD-5000

1100

5000

1-1/2"

103

355

76

245

78

145

10

2.5

LD-6000

1200

6000

1-1/2"

110

400

76

245

90

155

12

1.8

LD-8000

1900

8000

1-1/2"

115

415

76

245

90

155

14

1.5
